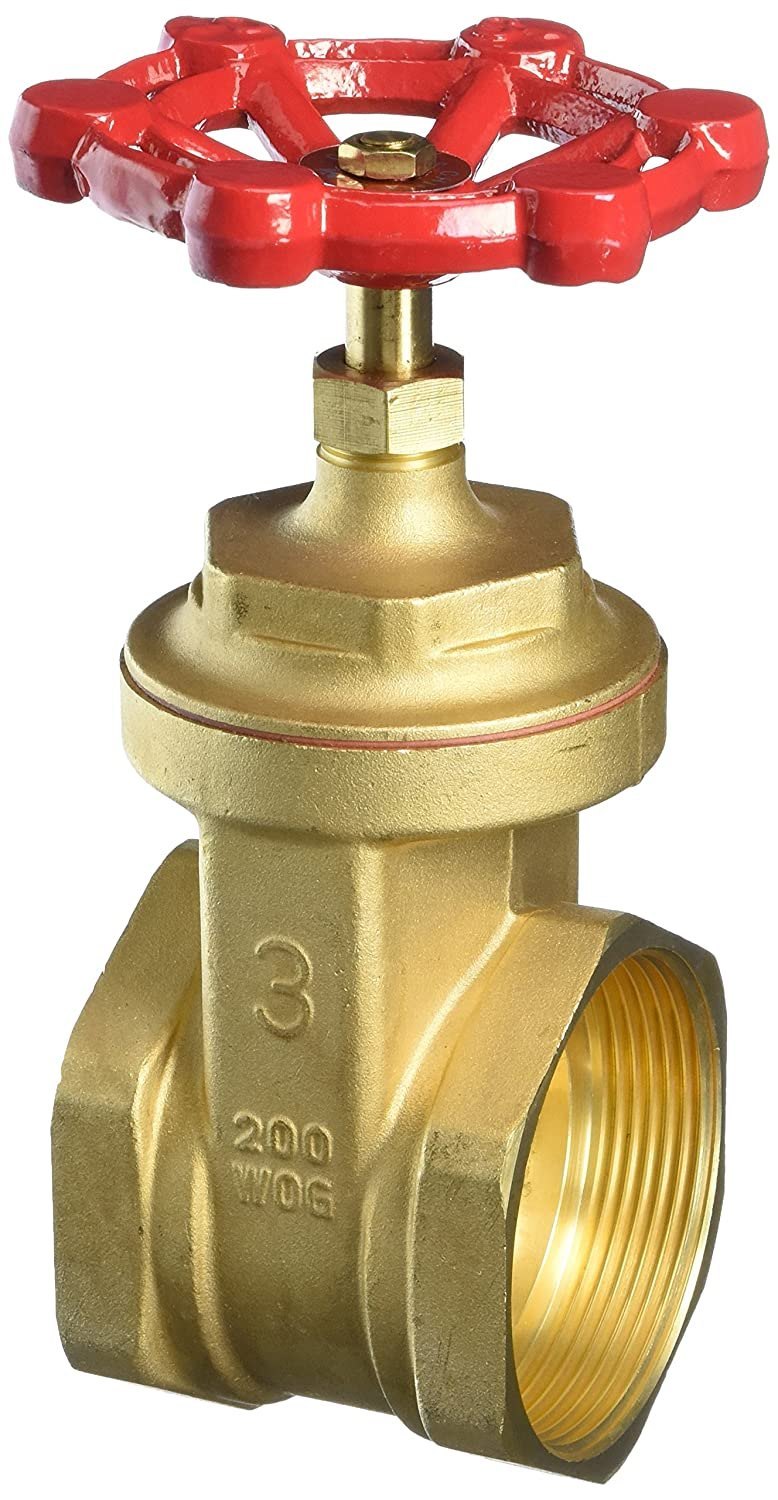

Brass Gate Valve
Manufacturer,Stockist and Exporter of Brass Gate Valve
Brass gate valves are widely used in plumbing and industrial applications for controlling the flow of liquids. They are designed with a gate-like mechanism that moves up and down to open or close the flow path. The use of brass offers excellent corrosion resistance and durability, making them suitable for water, oil, and gas systems. These valves are known for their reliability, long service life, and ease of operation. Brass gate valves are available in various sizes, from small residential fittings to large industrial valves. Their simple design ensures minimal pressure drop when fully open. They are commonly installed in pipelines where complete shut-off is required.
Brass gate valves operate by lifting or lowering a flat or wedge-shaped gate inside the valve body. When the gate is fully lifted, the flow path is unobstructed, allowing fluids to pass freely. Lowering the gate blocks the flow, effectively sealing the system. The valve stem is connected to the gate and is operated using a handwheel or actuator. These valves are generally used in on/off applications rather than flow regulation. The linear motion of the gate ensures tight sealing, reducing leakage risk. Proper installation and maintenance are critical for optimal performance.
Brass gate valves are primarily made of high-quality brass alloys that resist rust and corrosion. The stem, gate, and body are precision-engineered to ensure smooth operation and durability. Seals are often made of PTFE or rubber materials to prevent leaks. Brass offers excellent machinability, which allows for precise threading and tight tolerances. The valves can be chrome-plated for enhanced surface finish and added protection. The combination of brass and other corrosion-resistant materials ensures long-term reliability. These valves can withstand moderate temperature and pressure conditions effectively.
Brass gate valves provide several advantages over other types of valves. They are corrosion-resistant, which makes them suitable for water and chemical applications. Their simple design requires minimal maintenance. The valves offer tight shut-off, preventing leaks and wastage. Brass is durable and has a high tensile strength, ensuring long-term usage. They are also lightweight compared to steel or iron valves, simplifying installation. Additionally, they are cost-effective and widely available.
Brass gate valves are available in various types to meet specific needs. The most common types include solid wedge, flexible wedge, and parallel slide gate valves. Solid wedge valves are durable and suitable for high-pressure applications. Flexible wedge valves offer better sealing, especially in fluctuating pressures. Parallel slide valves are designed for tight shut-off in lower-pressure systems. Each type provides unique benefits, allowing users to select the appropriate valve for their system requirements.
Brass gate valves are used in domestic, commercial, and industrial applications. They are commonly installed in water supply lines, plumbing systems, and irrigation pipelines. Industrial applications include oil, gas, and chemical distribution systems. These valves are ideal for situations where a complete shut-off is required. They are also used in heating and cooling systems to control fluid flow. Their versatility makes them a preferred choice for multiple industries.
Brass gate valves are available in a wide range of sizes, typically from ½ inch to 6 inches. They are designed to handle pressures ranging from 150 psi to 400 psi, depending on the valve model. The size and pressure rating should be selected based on system requirements. Proper sizing ensures efficient operation and prevents premature wear. Most valves conform to international standards such as ANSI, BS, or DIN. Choosing the correct pressure rating enhances safety and performance.
Proper installation of brass gate valves is crucial for performance. Valves should be installed in pipelines with full support to prevent stress on the body. The flow direction should match the markings on the valve. Threaded connections must be sealed using Teflon tape or suitable sealants. Avoid excessive force when tightening to prevent damage. The valve should be fully opened and closed several times after installation to ensure smooth operation. Regular inspection is recommended to detect leaks or wear early.
Specification Of Brass Gate Valve
| Specification | Details |
|---|---|
| Material | High-quality Brass Alloy (CW617N / ASTM B16) |
| Type | Gate Valve, Solid Wedge / Flexible Wedge |
| Sizes Available | 1/2" to 6" (DN15 to DN150) |
| Pressure Rating | PN16 / 150 PSI |
| Connection Type | Threaded / BSP / NPT |
| Temperature Range | -20°C to 120°C |
| Endurance | 500–1000 cycles (depending on size) |
| Operation | Manual Handwheel / Actuator |
| Application | Water, Oil, Gas, and Industrial Fluids |
| Standards | ISO 9001, ANSI, BS EN, DIN |
Routine maintenance ensures long-term performance of brass gate valves. Lubrication of the stem is essential to prevent corrosion and ease operation. Seals should be checked periodically and replaced if damaged. Avoid using the valve to throttle flow, as it may damage the gate or seat. Cleaning the internal components can prevent sediment buildup. Maintenance also includes inspecting for leaks, cracks, or unusual wear. Proper maintenance extends the valve’s service life and reliability.
Common issues with brass gate valves include leakage, stiffness, and corrosion. Leakage may occur due to worn-out seals or improper installation. Stiff operation often results from corrosion or lack of lubrication. Sediment buildup can obstruct the gate movement. Regular inspection and maintenance can prevent most problems. Replacing worn components and ensuring proper lubrication resolves operational issues. Proper installation and correct pressure selection are key to avoiding failures.
Compared to ball or globe valves, brass gate valves are preferred for on/off applications. Ball valves provide quicker operation but may not handle larger sizes cost-effectively. Globe valves offer better flow control but create more pressure drop. Gate valves have a low-pressure drop when fully open. They are easier to repair and maintain compared to more complex valves. For applications requiring tight shut-off, brass gate valves are often more reliable. Their durability and simplicity make them a popular choice.
Chemical Properties Of Brass Gate Valve
| Element | Composition (%) | Purpose / Effect |
|---|---|---|
| Copper (Cu) | 60–70% | Provides corrosion resistance, durability, and thermal conductivity |
| Zinc (Zn) | 30–40% | Enhances strength and hardness while maintaining corrosion resistance |
| Lead (Pb) | 0.5–3% | Improves machinability of the valve components |
| Iron (Fe) | ≤0.3% | Increases mechanical strength without affecting corrosion resistance |
| Nickel (Ni) | ≤1% | Enhances corrosion resistance and strength in certain alloys |
| Other Trace Elements | ≤1% | Maintain alloy stability and improve physical properties |
Safety is essential when using brass gate valves. Always ensure the system pressure does not exceed the valve’s rating. Proper installation prevents leaks and potential hazards. Use protective equipment when working with pressurized systems. Avoid applying excessive force on the valve to prevent mechanical failure. Regular inspection helps detect early signs of wear or damage. Following manufacturer guidelines ensures safe and reliable operation.
Brass gate valves are environmentally friendly due to their long lifespan and recyclability. Brass can be recycled without losing quality, reducing environmental waste. Using durable valves reduces the need for frequent replacements, minimizing resource consumption. Proper disposal of old valves ensures no harmful materials enter the environment. Efficient sealing prevents leaks, reducing water or fluid wastage. Environmentally responsible practices in manufacturing and installation are encouraged.
Brass gate valves are available worldwide through various suppliers and distributors. They comply with standards like ANSI, BS, and ISO, ensuring compatibility and quality. Customers can choose from a range of sizes, pressure ratings, and connection types. Certification ensures reliability and adherence to safety regulations. OEMs often provide customization options for industrial requirements. Availability in local and online markets makes sourcing convenient.
Mechanical properties Properties Of Brass Gate Valve
| Property | Value / Range | Unit / Notes |
|---|---|---|
| Tensile Strength | 300–500 | MPa (Depends on brass alloy) |
| Yield Strength | 200–350 | MPa |
| Hardness | 70–90 | Brinell Hardness (BHN) |
| Elongation | 10–25 | % (Depends on alloy and temper) |
| Impact Resistance | Moderate | Good toughness for valve operation |
| Operating Pressure | 150–400 | PSI (Varies with valve size) |
| Operating Temperature | -20 to 120 | °C (Suitable for water, oil, and gas) |
| Corrosion Resistance | Excellent | Resistant to water, mild acids, and alkaline solutions |
